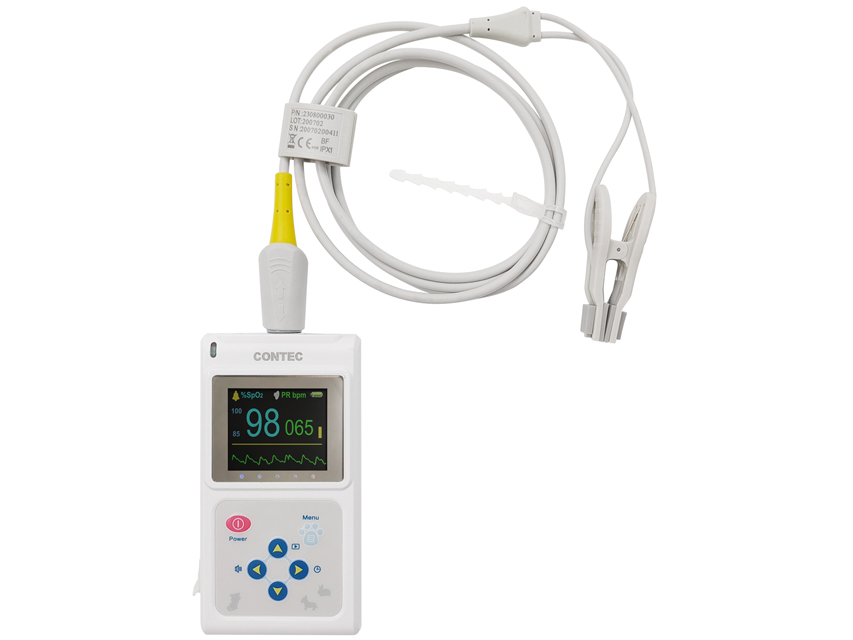

OXY-50 VET PULSE OXIMETER – with software
Pocket Vet pulse oximeter with colour display for routine check and continuous monitoring use.
– display: 1.77″ colour TFT
– resolution: 160×128
– display of pulse waveform
– alarm sound, pulse tone
– record: data can be recorded up to 24 hours
– alarm: adjustable high and low limits
– PC software for transfering real time data.
Supplied with Vet probe, 2 AA batteries, USB cable, PC software (GB, FR, IT, ES, DE, RU, PL) and user manual (GB, FR, IT, ES)
Technical Specifications
Pulse rate
Measuring range: 30 ~ 250 bpm (resolution 1 bpm)
Accuracy: ±2 bpm or ±2%
Average pulse rate: moving calculate the average pulse rate every 4 cardio-beat’s cycle. Deviation between average value and true value does not exceed 1%
Pulse intensity range: continuous bar-graph display, the higher display indicates the stronger pulse
Device
Power supply: DC 3V, < 100 MA
Battery: dry battery (2AA)
Oxymeter probe: wavelength: 660 - 905 nm
Dimension - weight: 110x60xh 23 mm - 120g (with battery)
Safe type: BF Type
SpO2
Measuring range: 0~100%, (resolution 1%)
Accuracy: 70~100%: ±2%
Average value: calculate the average value every 4 measure value deviation between average value and true value does not exceed 1%
