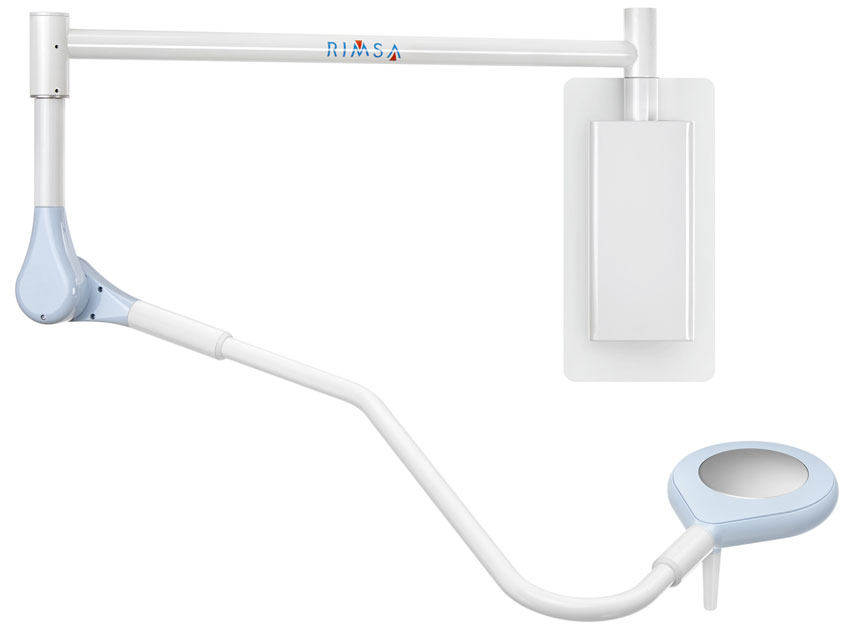

Saturno LED light – wall
SATURNO is a shadow-less type lamp suitable for small surgery, gynaecology and examination.
– light beams are generated from 9 LEDs – 2.5 W each
– heat is dissipated through aluminium cover reflector
– selection of 2 different white light temperatures: 4,000 and 4,500 °K
– light intensity adjustable at 6 different levels through front digital panel
– luminous intensity 50,000 LUX at 1 m. Ø of illuminated field 28 cm
– adjustable friction bearing are mounted on every articulation of the lamp
– thanks to optical concept, no need to be focus adjusted
Battery group with charger: 4 hours autonomy, 6 hours recharging.
Made in Italy.
Technical Specifications
Light intensity at 1 m distance: Lux 50,000
Colour temperature adjustable: K° 4,000/4,500 ± 5%
9 LEDs: W 2.5 each
Average LED life hours: 50,000
CRI (chromatic rendering Index): Ra 95
Diameter of illuminated field: Ø cm 28
Diameter of the reflector: cm 19.5
Depth of illumination IEC 60601-2-41 (L1+L2) at 60% of Ec: cm 124
Total radiated energy Ec: W/m2 163
Useful lighting surface of the cupola: cm2 65
Weight: kg 11
Power requirements: V, Hz 100-240, 50-60
Standards: IEC 60601-1 IEC 60601-2-41, MDD 93/42 CEE, 2007/47/CE, medical device of Class I
