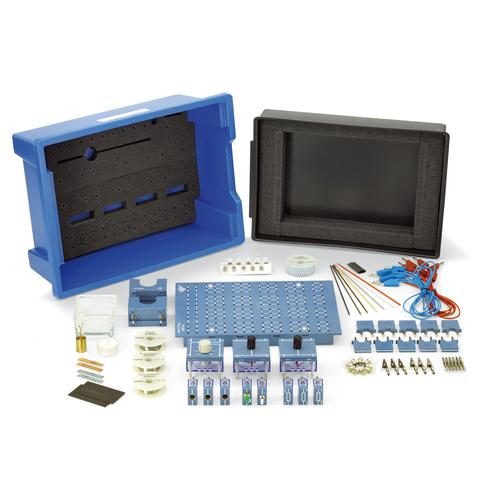

Set of apparatus for carrying out 28 fundamental student experiments on electricity.
Stored in a tough Gratnells tray with foam inlay featuring recesses moulded
to the shape of the apparatus and covered by a transparent lid. Circuits are
assembled using components in plug-in housings plugged into a plug-in board.
Power is supplied via 2 D-cell, LR20, 1.5 V batteries (batteries not included)
or via an external power supply.
Includes instructions for 28 experiments on electricity:
· Simple electric circuits (2x)
· Electrical conductors and insulators
· Production of heat and light
· Various sources of electricity *)
· Conduction in liquids *)
· Single-pole change-over switches (SPDT)
· Two-way switches
· Measurement of current in a simple electric circuit **)
· Measurement of voltage in a simple electric circuit **)
· Incandescent lamps connected in series
· Incandescent lamps connected in parallel
· Terminal voltage and open-circuit (no-load) voltage **)
· Batteries connected in series and parallel **)
· Battery made from a lemon **)
· Relationship between voltage and current determined by varying voltage *)**)
· How electrical power depends on other variables in an electric circuit *)**)
· How electrical work depends on other variables in an electric circuit *)**)
· Ohmic resistance *)**)
· How electrical resistance depends on temperature (2x) *)**)
· How electrical resistance depends on the length
