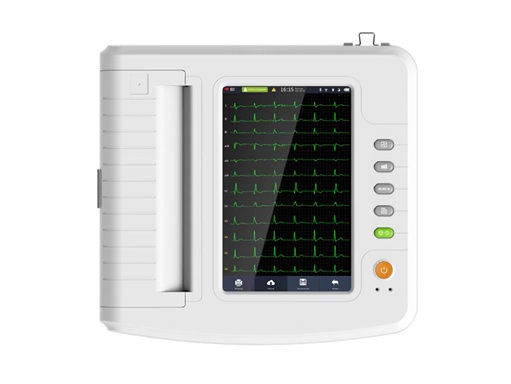

12 CHANNEL ECG – 1212G – with software
It can collect 12-lead ECG signal simultaneously and print ECG waveform with built-in thermal printing system.
It features in recording and displaying ECG waveform in auto/manual mode; measuring, analyzing and diagnosing ECG waveform parameters automatically.
– 1280×800 dots, 10.1” high resolution colour LCD display
– display of 3/6/12-lead ECG to observe abnormal heart rhythm
– powered by AC/DC or built-in rechargeable lithium battery
– up to 10-hour standby and continuous print over 3-hours
– record up to 1,000 ECG waveforms
– auto-measurement and auto-interpretation of routine ECG provide measurement results and auto-diagnosis conclusion
– auto-diagnosis conclusion for HR, PR Interval, P Duration, QRS Duration, T Duration, QT/QTc Interval, P/QRS/T Axis, R(V5), S(V1), R(V5)+S(V1) amplitude
– built-in large memory can store at least 4000 medical records,
– functions of LAN, USB cable transmission. Automatically upload cases, download reports and print them
– historical medical records can be exported to other electronic file formats (dat, pdf, xml, bmp, jpeg, png etc.)
