Just Arrived the new Capnograph

1,399.00

SKU:33831

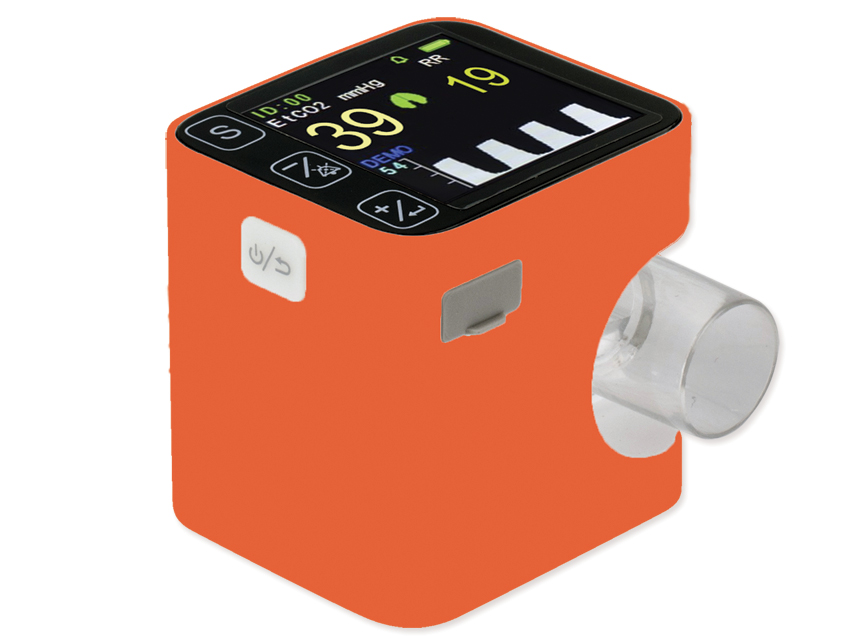

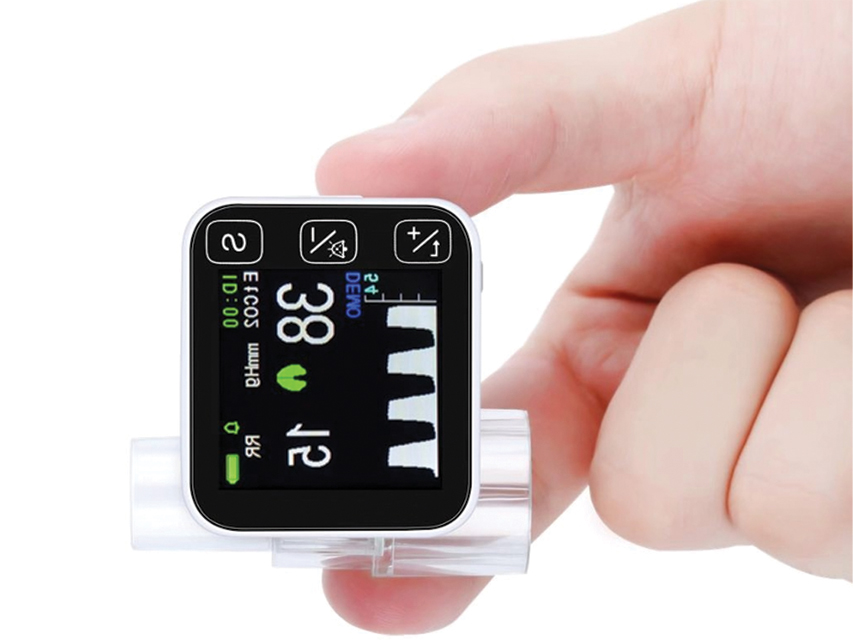

Innovative capnograph designed for monitoring the vital physiological signs of patients from newborn to adult.

– sensitive and accurate monitoring of EtCO2, respiration rate, real-time Capnogram within 15 seconds
– suitable for pre-hospital first aid, incubator, anesthesiology, respiration, sleeping monitoring and intubated monitoring
– 24 hours memory with data management software
– large numeric display visible from 5 meters

Supplied with adult/pediatric adaptor, neonatal adaptor, silicone protection, USB cable, AC adapter, CD software and manual (GB, IT).

End-tidal CO2
Multi-function key
Power key Start to full accuracy in 15 sec
USB socket Charging & Data output
Dimension: 38 x 42 x 44 mm
Weight: 80 g including battery and adapter
Respiration rate
Capnogram 8 sec. real time data
Airway adapter Adult/Pediatric/Neonate
Technical Specifications
EtC02
• Method: Non-dispersive infrared Spectroscopy
• Range: 0-150 mmHg or 0-20 kPa
• Accuracy:
± 2 mmHg, range from 0-40 mmHg
± 5%, range from 41-70 mmHg
± 8%, range from 71-100 mmHg
• Update time: Every breath
• Warm up time: < 15 seconds
• Memory: 24 hours with trend and numeric

Respiration rate
• Range: 3-150 rpm ± 1% or ± 1 rpm
• Memory: 24 hours with trend and numeric
• Sensor: adapter for intubated patient

InsCO2
• Range: 3 – 50 mmHg

Other
• Airway adapter dead space: 5 ml (adult/pediatric), 1 ml (neonate)
• AC input: 100-240 V, 50/60 Hz – 5 W
• Battery: lithium 3.7 V, 1400 mAH
• Charging time: 4 hours
• Operating time: 6 hours
• Firmware software: GB, FR, IT, ES, DE, NL
• Norms: IEC 60601-1/cSa 601-1/ul2601-1
• Protection: type BF – Class II, IP 33
